Fox from Windrider

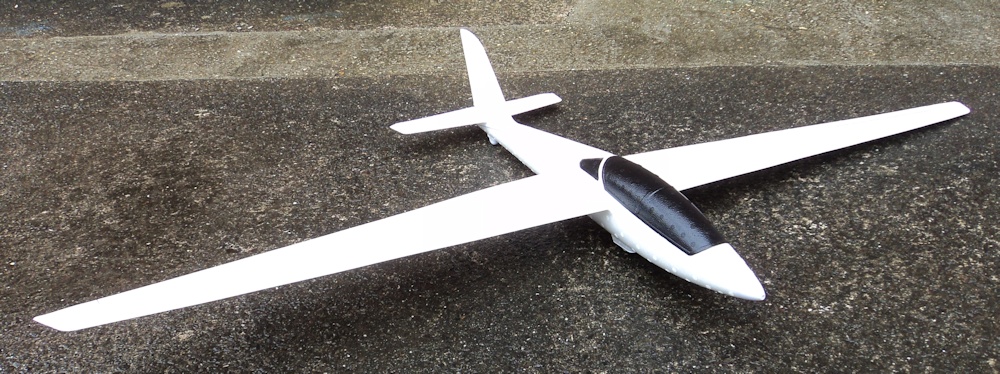

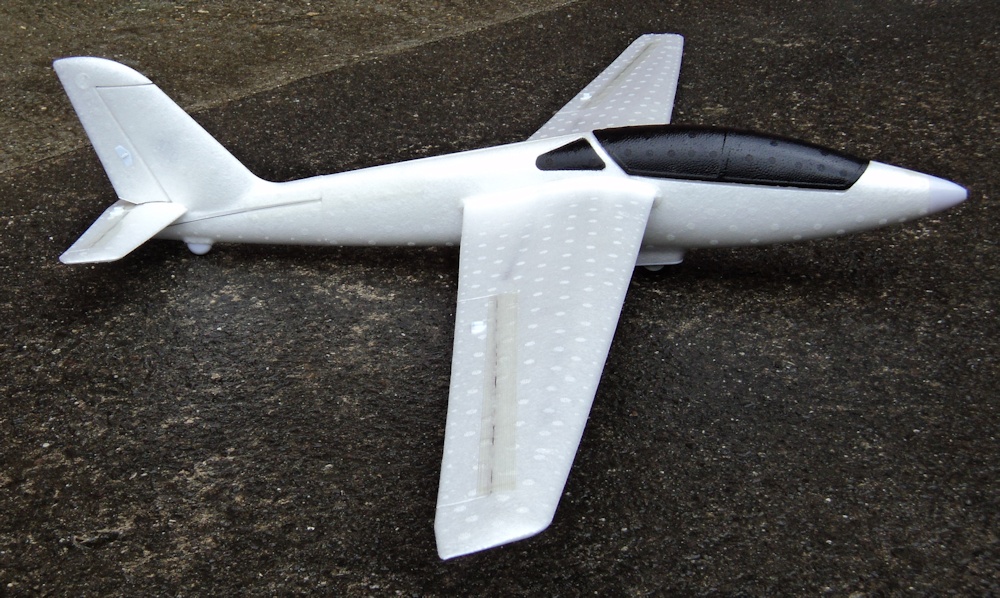

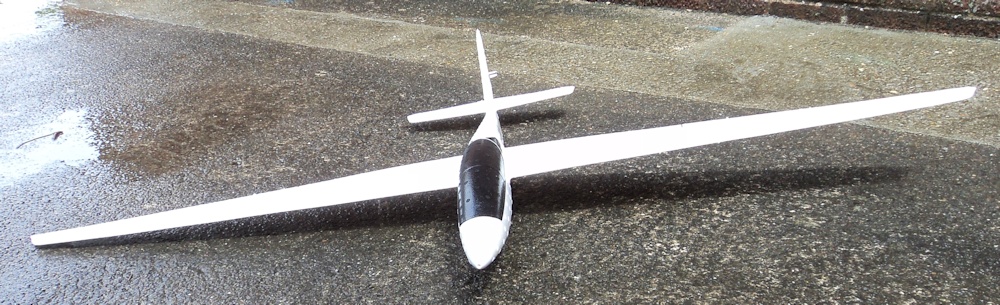

6 Jun 12 - Model completed.

Fox from Windrider Fox from Windrider Fox from Windrider

N of launches / Time 0 0 mins
Wingspan 66" 1.68 m
Wing Area 310 in 20.0 dm
Flying Weight 17.3 oz. 490 g
Wing Loading 8.0 oz / ft 24.5 g/dm
Wing Cube Loading 5.5 - between 'Glider' and 'Trainer' (OK for slope flying)
Receiver OrangeRx R610 - 6Ch - 2.4Ghz (Spektrum DSM2 compatible) with a Remote Receiver
Batteries 4-cell AAA 850mAh VAPEXTECH 'New Technology' NiMH pack
Servos Ailerons - 2 x generic 9g
Elevator - Hitec HS-303BB
Rudder - Futaba DS281 digital
Flight performance Yet to be flown

6 Jun 12 - I can't believe it's almost 4 years since I bought this kit.  Having started it took me all of a days work to build it, and most of that was is devising a good system for the aileron connections to automatically make when the wings are plugged in.  Considering I've used the equipment described, with the only variations being the self-connecting aileron plugs (~5g) and a battery monitor ~8g), I can't see how you could possibly achieve the stated weight of 425g; the empty airframe can't be far off that.  But no matter the wing loading and WCL are good for slope flying.
