Booby from Wowings

19 Jun 08 - Flown for first time.

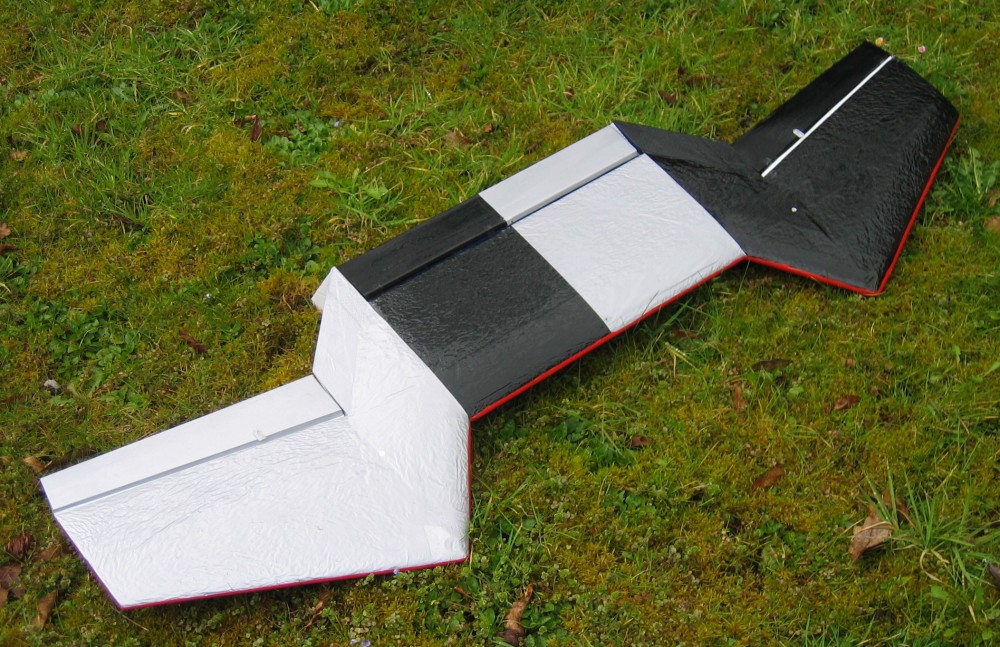

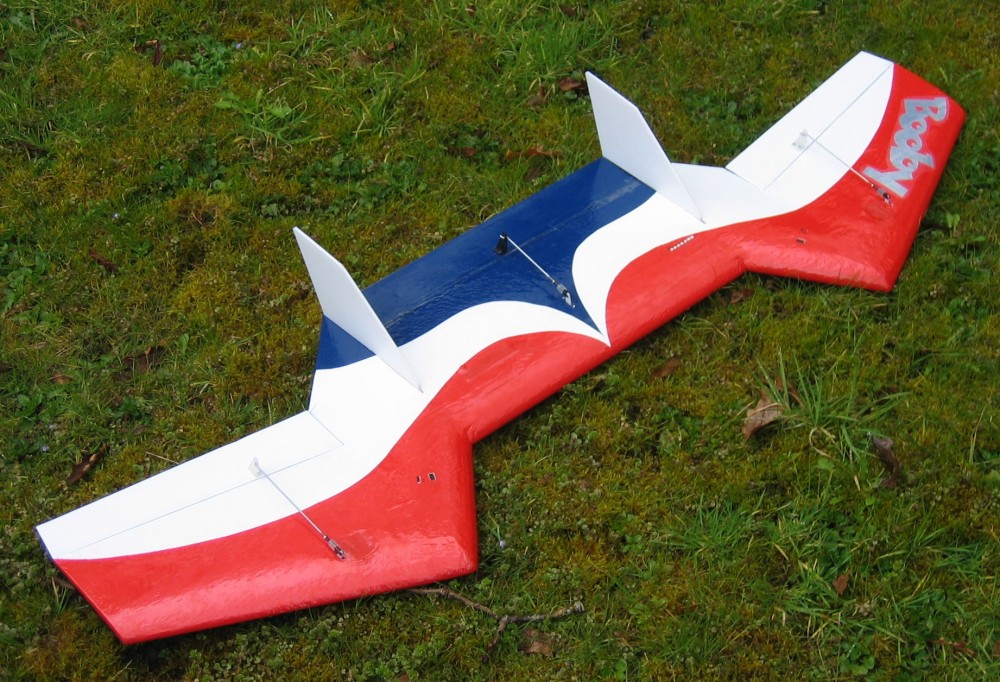

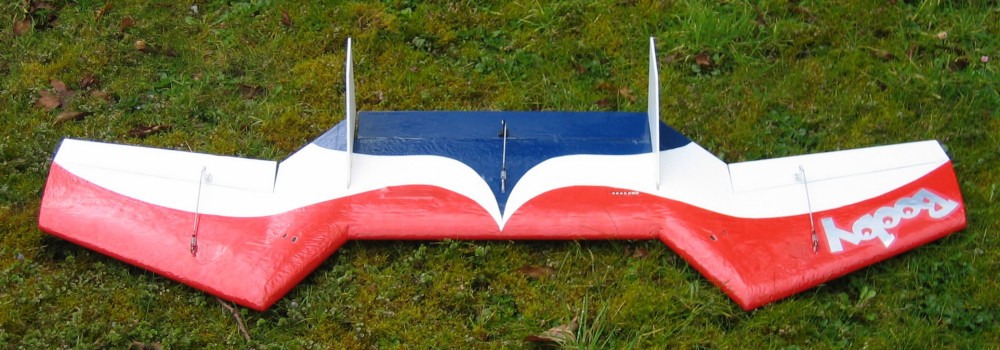

Booby topside Booby face on Booby underside

N of launches / Time 4 58 mins
Wingspan 47.2" 120 cm
Wing Area 424 in 27.4 dm
Flying Weight 1 lb. 7 oz. 665 g
Wing Loading 8.0 oz/ft 24.3 g/dm
Wing Cube Loading 4.6 - Just above 'Glider'
Receiver GWS RD8SL - 8ch - PPM - 35MHz - Dual Conversion
Batteries 2 x 4-cell Everfast 'New Technology' NiMH 2300 mAh AA packs with independent switches
Servos Elevator - Hitec HS-85MG
Ailerons - 2 x Hitec HS-85MG
Flight performance Flew extremely well and looks very different in the air; need more flights before really pushing the performance

28 Mar 08 - I built this slightly differently to the instructions as I fitted 2 battery packs in the 'noses' rather than fit lead in one.  Both packs have their own switch and charging point, and a battery meter is fitted to the RX to allow voltage checking.  The packs can be switch on individually or together depending on the charge state.  It is covered with a mixture of Oracover (white), SolarFilm (blue and black) and EasyCote (red and silver).
