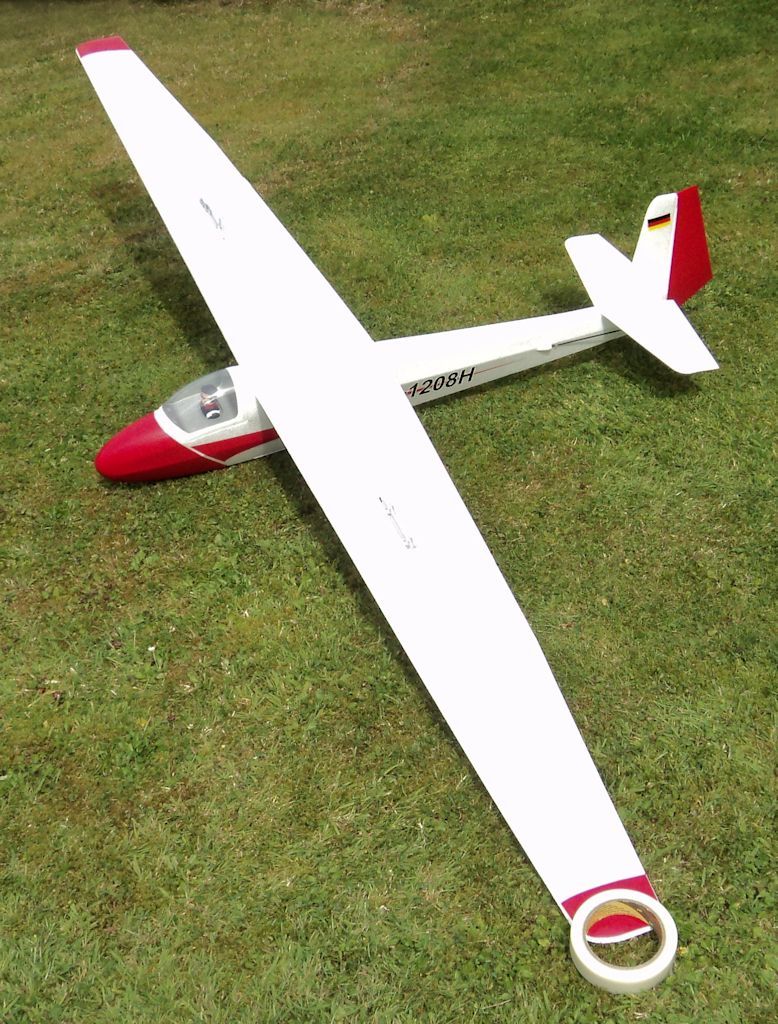

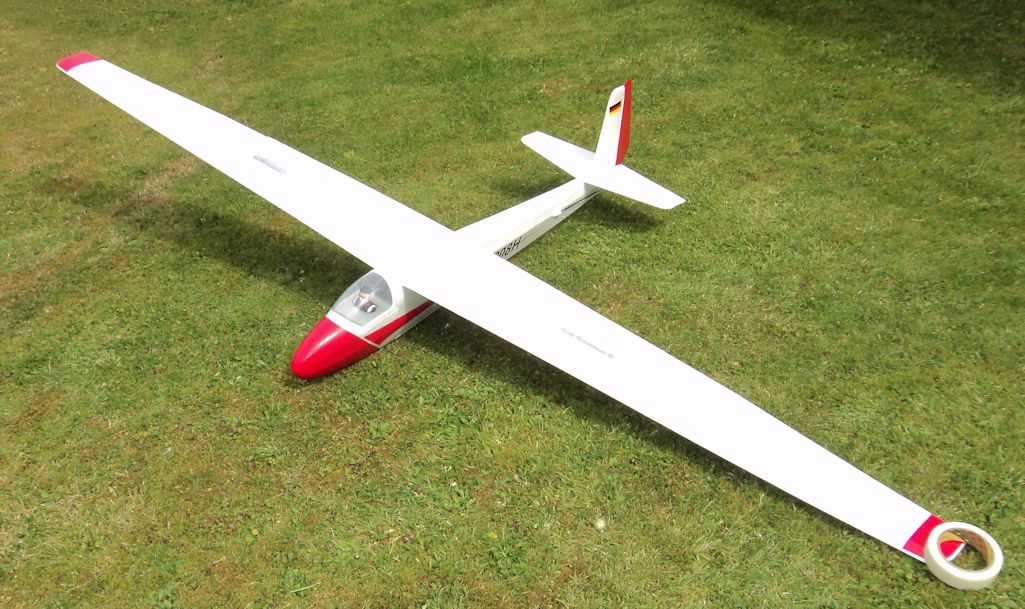

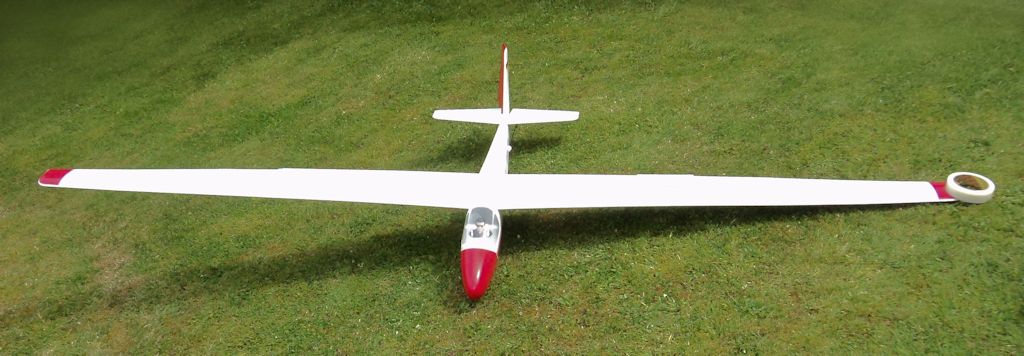

Ka8B (PKZ6675) from Parkzone

12 Jul 14 - Model completed.

Ka8B from Parkzone Ka8B from Parkzone Ka8B from Parkzone

N of launches / Time 10 8 mins
Wingspan 88.6" 2.25 m (1:6.7 scale)
Wing Area 493  in 31.8 dm
Flying Weight 28.3 oz. 803 g
Wing Loading 8.3 oz / ft 25.3 g/dm
Wing Cube Loading 4.5 - just above 'Glider'
Receiver Spektrum AR610 - 6ch DSMX - 2.4GHz
Batteries 2S 1300mAh 20C LiPo with E-flite 2-3 cell Li-Po Regulator 5.5V (EFLA120)
Servos Ailerons - 2 x Parkzone SV80 (long lead) pre-installed
Elevator - Parkzone SV80 pre-installed
Rudder - Parkzone SV80 pre-installed
Spoliers - Parkzone DSV130 digital pre-installed
Tow-Release - Parkzone Servoless Payload Release (EFLA405)
Flight performance Only short flights flown from hi-start bungee launches so far.  Flies fairly nicely although control surface movements need some tuning.

12 Jul 14 - I was amazed having completed assembling this kit; it came out only slightly higher than the stated weight even with the optional tow-release fitted.
